Introduction

In this topic we discuss very basic glide quires that we can use in ServiceNow. This scripts are mostly for beginners in ServiceNow.

Any data operation is done via CRUD (Create Read Update Delete).ServiceNow too have a rich set of functionality in Glide Object that helps to make changes in data model.Lets us go through few scripts below

Basic CRUD script

Add Query

var rec = new GlideRecord('incident'),
    rec.addQuery('number', 'INC0012345');
rec.query();

var rec = new GlideRecord('incident');
gr.addQuery('closed_at', '>', gs.nowDateTime());

var rec = new GlideRecord('incident');
rec.addQuery('number', 'CONTAINS', '123');

Select Query

Objective: Get all the list of incidents

// Initialize a glidequery for table incident.
// runs the query
// Loop through the results of the query
// rec is a single row of the result,in rec.number is the column name in table incident
var rec = new GlideRecord('incident');
rec.query();

while (rec.next()) {
    gs.print(rec.number + ' exists');
}

Update Query

Objective: update all active incident to inactive

// Initialize a glide query for table incident.
// Add filter with incident which are active = true
// Run the query
// Loop through the result
// Set the current rec to active false.
// Print the current rec
// Execute update
var rec = new GlideRecord('incident');
rec.addQuery('active', true);
rec.query();

while (rec.next()) {
    rec.active = false;
    gs.print('Active incident ' + rec.number = ' closed');
    ec.update();
}

Insert Query

Objective: Insert a new incident

var rec = new GlideRecord('incident');
rec.initialize();
rec.short_description = 'Network problem';
rec.caller_id.setDisplayValue('Joe Employee');
rec.insert();

Delete Query

Objective: Delete inactive incidents

var rec = new GlideRecord('incident');
rec.addQuery('active', false);
rec.query();

while (rec.next()) {
    gs.print('Inactive incident ' + rec.number + ' deleted');
    rec.deleteRecord();
}

Add EncodedQuery

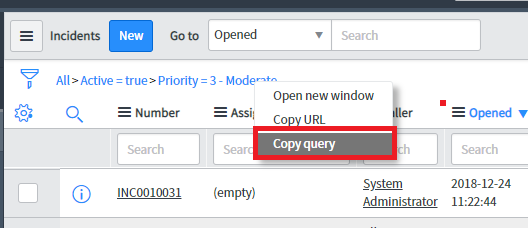

A easy way to use encoded query is first create the required filter in ServiceNow table.
Right click on the filter and click “copy query”


Then write the script with addEncodedQuery and paste the query inside () Note: This CANNOT be used in client script and UI policy

var gr = new GlideRecord("incident");

// Copy paste from filter applied in Incident Table
gr.addEncodedQuery("active=true^priority=3");
gr.query();

while (gr.next()) {
    gs.print(gr.number);
}

OR Query

The standard addQuery parameter acts like an and condition in our query. This example shows how we can add ‘or’ conditions to our query.

Objective: Find all incidents with a priority of 1 or 2

var rec = new GlideRecord('incident');
rec.addQuery('priority', 1).addOrCondition('priority', 2);
rec.query();

while (rec.next()) {

    //Do something with the records returned
    if (rec.category == 'software') {
        gs.log('Category is ' + rec.category);
    }
}

Glide Aggregate

GlideAggregate is actually an extension of the GlideRecord object. It allows you to perform the following aggregations on query record-sets.

  • COUNT
  • SUM
  • MIN
  • MAX
  • AVG

Objective: Find all active incidents and print a count of records

  var gr = new GlideAggregate('incident');
  gr.addQuery('active', true);
  gr.addAggregate('COUNT');
  gr.query();

  var rec= 0;

    if (gr.next()){

      rec= gr.getAggregate('COUNT');
      gs.print('Active incident count: ' + rec);

    }

O/P:

[0:00:00.004] Script completed in scope global: script
*** Script: Active incident count: 2646O/P:

Objective: Get a count of all the open incidents by category

var gr = new GlideAggregate('incident');
gr.addQuery('active', true);
gr.addAggregate('COUNT', 'category');
gr.query();

while (gr.next()) {
    var rec = gr.category;
    var categoryCount = gr.getAggregate('COUNT', 'category');
    gs.print("there are currently " + categoryCount + " incidents with a category of " + rec);
}
O/P: [0:00:00.017] Script completed in scope global: script
*** Script: there are currently 1 incidents with a category of database
*** Script: there are currently 4 incidents with a category of hardware
*** Script: there are currently 2629 incidents with a category of inquiry
*** Script: there are currently 4 incidents with a category of network
*** Script: there are currently 6 incidents with a category of software

OrderBy and OrderBy Descending

We can order the results of our record set by using orderBy and/or orderByDesc

var gr = new GlideRecord('incident');
gr.orderBy('number');
gr.query();

while (gr.next()) {
    gs.print(gr.number);
}
O/P:[0:00:00.467] Script completed in scope global: script
*** Script: INC0000001
*** Script: INC0000002
*** Script: INC0000003
*** Script: INC0000004
*** Script: INC0000005
*** Script: INC0000006
*** Script: INC0000007
*** Script: INC0000008
*** Script: INC0000009
*** Script: INC0000010

Set Limit

setLimit can be used to limit the number of results returned

 var gr = new GlideRecord('incident');
gr.orderBy('number');
gr.setLimit(10);
gr.query();

while (gr.next()) {
    gs.print(gr.number);
}
O/P:[0:00:00.467] Script completed in scope global: script
*** Script: INC0000001
*** Script: INC0000002
*** Script: INC0000003
*** Script: INC0000004
*** Script: INC0000005
*** Script: INC0000006
*** Script: INC0000007
*** Script: INC0000008
*** Script: INC0000009
*** Script: INC0000010

Set Workflow

setWorkflow is used to enable/disable the running of any business rules that may be triggered by a particular update.

var gr = new GlideRecord('incident');
gr.addQuery('category', 'software');
gr.query();

while (gr.next()) {
    gr.category = 'hardware';
    gr.setWorkflow(false);
    gr.update();
}

Add Null & Not Null Query

When addNullQuery() is called on a GlideRecord object, it adds a condition to your query, stating that the field passed into the method call must be null (empty).

When the addNotNullQuery() method is called with a field name as an argument, a condition is added to your query stating just the opposite - that the field must contain a value - any value. It must be NotNull.

var rec = new GlideRecord('incident');
rec.addNullQuery('assigned_to');
rec.addNotNullQuery('assignment_group');
rec.query();

while (gr.next()) {
    gs.print(rec.number);
}

In this case, query will print the incident numbers where the assignment_group field have value, but the assigned_to field does not have a value.

GetDisplayValue()

getDisplayValue() is quite simple, as it accepts no arguments, and returns the display value for the record upon which it’s called.

var rec = new GlideRecord('incident');
rec.addQuery('sys_id', '57af7aec73d423002728660c4cf6a71c');
rec.query();

if (rec.next()) {
    gs.print(rec.number);
    var callerid = rec.caller_id;
    gs.print(callerid.getDisplayValue());
}

getValue()

getValue() returns the value of a specific field or column. This can be the sys_id column, or any other column that might contain a value.

var rec = new GlideRecord('incident');
rec.addQuery('sys_id', );

var sysIDVal = gr.getValue('sys_id');
var incNumber = gr.getValue('number');

Conclusion

That’s all for now. Hope these queries will give you some idea on CRUD operation in ServiceNow. Have a look at advance glide scripts too.
